Weather Proof Type Double Compression Cable Glands

Weather Proof Type Double Compression Cable Glands
Weather Proof Type Double Compression Cable Glands
Product Code : 01
Brand Name : COMET
Product Description

COMET Weather Proof Type Double Compression Cable Glands Suitable For Armoured Cables :

Application : For use under most climatic conditions.This are Weatherproof as per IP66-IS 13947 part I and may be used in the corrosive conditions when protected by the shroud.

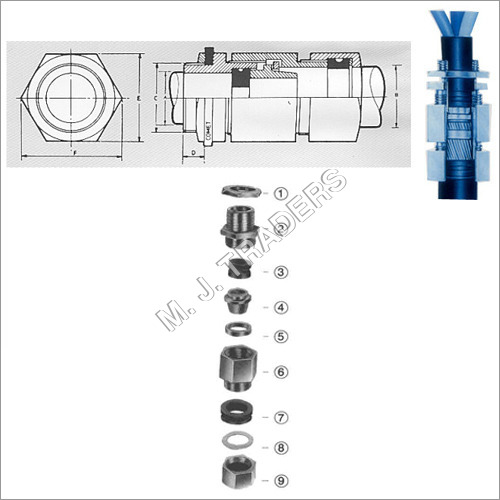

Specification : Gland consist of checknut 1, gland  body 2, neoprene inner ring 3, armour clamping cone 4, armour clamping ring 5, amour clamping nut 6,neoprene outer ring 7, skid washer 8, outer seal nut 9. All metal parts are made of brass accurately machined for ease of assembly.

Extras : Shrouds and Earth tags are supplied separately and should be specified when ordering the gland.



Indoor Or Outdoor Gland For Single Wire Armoured Cables

Gland reference

Cable dimensions

Gland dimensions

  Diameter Armour wire
diameter
Entry thread Across
flats

(E)
Across
corners

(F)
Under
armour
(A)
Overall
Diameter
(B)
Entry

(C)
Length

(D)
size mm mm mm inch mm mm mm
CBW01SS 8.0 12.0 0.8/1.4 3/4" 15.0 21.0 23.5
CBW01S 10.0 16.5 0.8/1.4 3/4" 15.0 25.0 29.0
CBW01 12.0 18.0 0.8/1.4 3/4" 15.0 28.0 32.0
CBW01A 12.0 18.0 0.8/1.4 1" 15.0 28.0 32.0
CBW02 14.0 20.0 0.8/1.4 1" 15.0 31.5 36.5
CBW02A 14.0 20.0 0.8/1.4 3/4" 15.0 31.5 36.5
CBW03 17.0 23.0 0.8/1.4 " 15.0 32.0 37.0
CBW04 20.0 26.0 0.8/1.4 1" 15.0 38.0 44.0
CBW04A 20.0 26.0 0.8/1.4 11/4" 15.0 38.0 44.0
CBW05 24.0 30.0 0.8/1.4 11/4" 15.0 41.0 47.0
CBW05A 24.0 30.0 0.8/1.4 11/2" 15.0 41.0 47.0
CBW06 27.0 33.0 0.8/1.4 11/2" 15.0 47.0 54.0
CBW06A 27.0 33.0 0.8/1.4 11/4" 15.0 47.0 54.0
CBW07 30.0 37.0 0.8/1.4 11/2" 15.0 52.0 58.0
CBW08 35.0 41.0 0.8/1.4 2" 15.0 56.0 64.0
CBW09 40.0 46.0 0.8/1.4 2" 15.0 59.0 67.0
CBW010 46.0 52.0 0.8/1.4 2" 20.0 67.5 77.0
CBW010A 46.0 52.0 0.8/1.4 21/2" 20.0 67.5 77.0
CBW011 54.0 60.0 0.8/1.4 21/2" 20.0 80.0 92.0
CBW012 60.0 67.0 0.8/1.4 3" 20.0 85.0 98.0
CBW013A 66.0 72.0 0.8/1.4 3" 20.0 90.0 99.0
CBW013 72.0 78.0 0.8/1.4 31/4" 20.0 99.0 113.0
CBW014 78.0 84.0 0.8/1.4 31/2" 20.0 108.0 122.0
CBW015 88.0 94.0 0.8/1.4 4" 20.0 117.0 131.0
CBW016 98.0 105.0 0.8/1.4 41/2" 20.0 130.0 145.0
